Film Mount Cross Reference Chart
Find the TPC pocket, notched or window film mount that matches Casterm, Rinn, Flow and ADA mount numbers.
Sold through authorized dealers · 800-560-8222 · sbeckley@tpcdental.com
Full chart
| Windows / film | TPC | Casterm | Rinn | Flow | ADA | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Layout | Notched | Window | Notched | Window | Notched | Window | Window | |||
| Universal | CP102U | N.A. | 20-0102 | |||||||
| 2H #2 6H#0 | CP8 PEDO | 108 PEDO | N.A. | N.A. | N.A. | |||||
| 1H #2 | CP1C | N1H2 | W1H2 | 20-1018 | 25-0178 | 30-6011 | 23200 | 601-200G | 22004 | |
| 2H #0 | N2H0 | W2H0 | 20-1024 | 25-0811 | 30-4021 | 23608 | 402-608G | 22616 | ||
| 2H #2 | CP2H | N2H2 | W2H2 | 102H | 20-1020 | 25-0179 | 30-6021 | 23203 | 602-203G | 22020 |
| 2H #3 | N2H3 | W2H3 | 20-1023 | 25-0180 | 30-7021 | N.A. | 702-206G | 22061 | ||
| 4H #0 | N4H0 | W4H0 | 20-1044 | 25-0187 | 30-4040 | 23609 | 404-609G | 22624 | ||
| 4H #2 | CP4C | N4H2 | W4H2 | 104C | 20-1048 | 25-0181 | 30-6040 | 23209 | 604-209G | 22103 |
| 4H | CP4H | 104H | 20-1040 | 25-0815 | 30-6045 | 23239 | 6045-239G | 22152 | ||
| 4H 2V #2 | CP4H2V | N4H2V2 | W4H2V2 | 106HV | 20-1062 | 25-1061 | 30-6062 | 23216 | 606-216G | 22202 |
| 6H #2 | CP6H | N6H2 | W6H2 | 106H | 20-1060 | 25-0182 | 30-6061 | 23215 | 606-215G | 22194 |
| 8H #2 | CP8C | N8H2 | W8H2 | 108C | 20-1088 | 25-0825 | 30-6081 | 23219 | 608-219G | 22251 |
| 10H #2 | CP10C | 110C | 20-1108 | N.A. | 30-6101 | 23220 | 610-220G | 22285 | ||
| 8H 6V #2 | CP8H6V | N8H6V2 | W8H6V2 | 114HV | 20-1142 | 25-0184 | 30-6141 | 23225 | 614-225G | 22335 |
| 12H 6V #2 | CP12H6V | N12H6V2 | W12H6V2 | 116-118HV | 20-1182 | 25-0187 | 30-6180 | 23228 | 618-268G | 22400 |
| 10BW #2 | CP10C | N10BW2 | W10BW2 | 110C | 20-1108 | 25-0821 | 30-2345 | 23261 | 610-261G | 22558 |
| 10BW #3 | N10BW3 | N.A. | 25-0820 | 30-3456 | 23262 | N.A. | N.A. | |||
| 20BW #2 | W20BW2 | 80-0138 | N.A. | 30-4567 | N.A. | 618-230G | 22574 | |||
H = horizontal windows, V = vertical windows, BW = bitewing windows, #0 / #2 / #3 = film size. N.A. = no equivalent.
About the chart

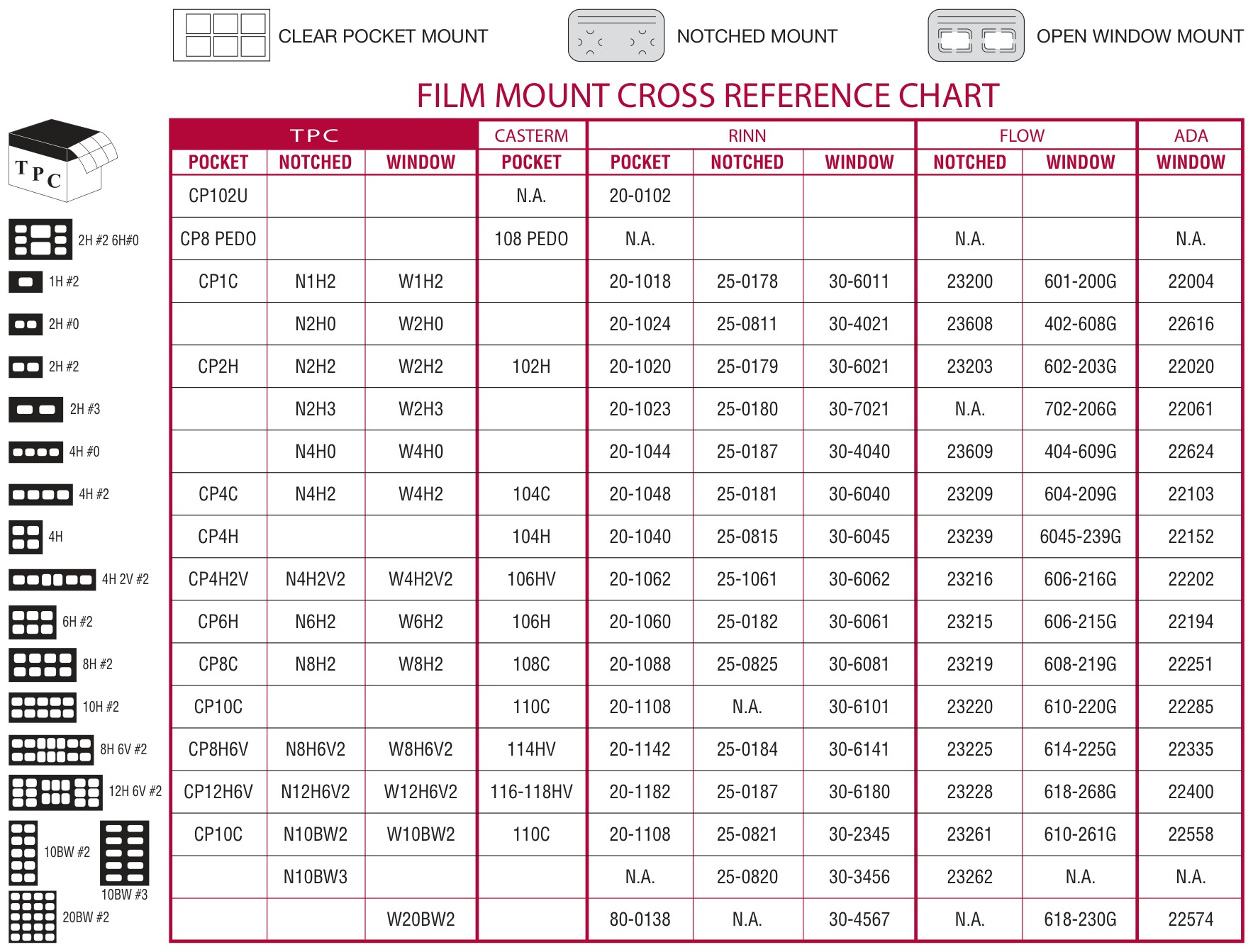

The chart cross references TPC clear pocket, notched and open window film mounts with equivalent Casterm, Rinn, Flow and ADA mount numbers, listed by number and layout of windows (for example 1H #2, 2H #2, 4H #2, 6H #2, 8H #2 and 20BW #2). The photo above shows the layout icons; the table below lists every number. The chart is also in the catalog (page 137).
