Products › Operatory Packages › Mirage 2.0 Swing Mount Operatory System
MIRAGE 2.0 SWING MOUNT PACKAGE · MSP3500-2.0 / MSP3550-2.0-CB

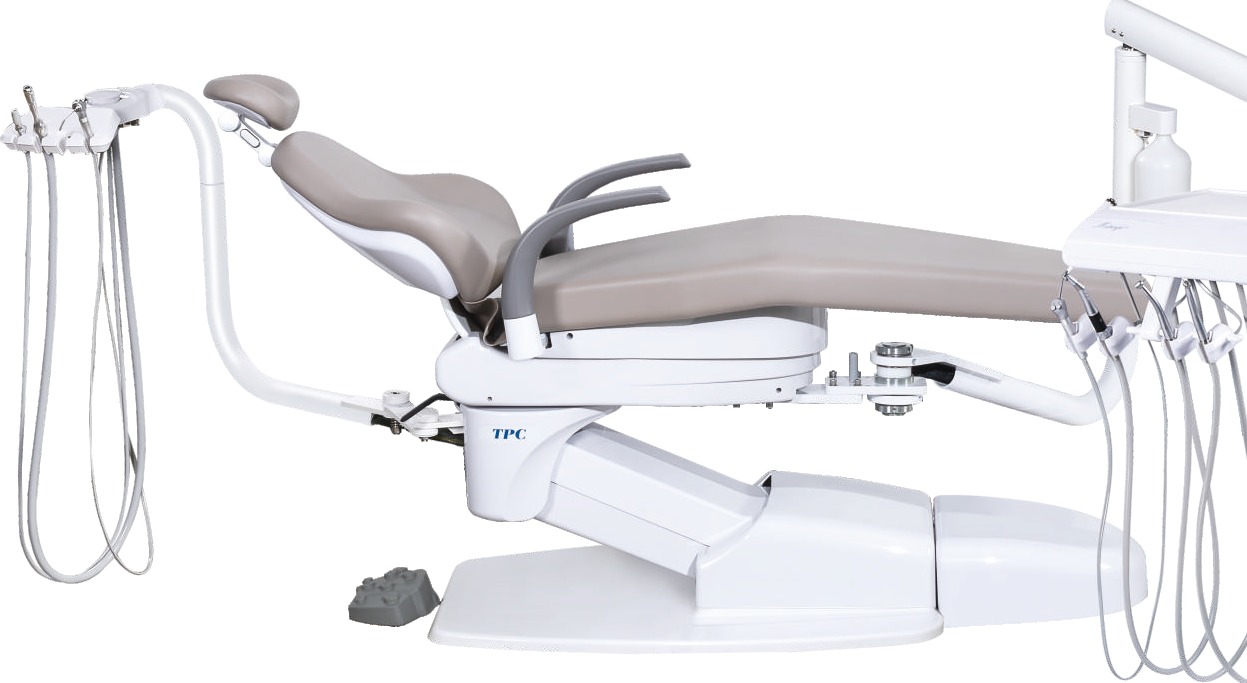

Mirage 2.0 Swing Mount Operatory System
Swing mount operatory with the 4000-2.0 hydraulic chair (steel or cast aluminum base), 3500-2.0 rotating unit and 3550-2.0 rear radius assistant’s arm.
Sold through authorized dealers · 800-560-8222 · sbeckley@tpcdental.com
Models
| Model | Description |
|---|---|
| MSP3500-2.0 | Mirage 2.0 Swing Mount Operatory System with Steel Base |
| MSP3550-2.0-CB | Mirage 2.0 Swing Mount Operatory System with Cast Aluminum Base |
Package includes
| Part | Description |
|---|---|
| 4000-2.0 | Hydraulic patient chair with steel base, wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 4 programmable positions with automatic return and foot control |
| 3500-2.0 | Rotating asepsis 3 Handpiece automatic control with coolant controls, flex arm with air brake, diaphragm block design, wet/ dry variable speed foot control, deluxe utility center with air /water filters and regulators, master shut off valves. Includes 3 way syringe and clean water system, with touch pad control |
| 3550-2.0 | Rear radius asepsis assistant's arm system, Hve and saliva ejector, water quick disconnect and solids collector, 3 Way Syringe |
| 4000-2.0-CB | Hydraulic Cast Aluminum Base patient chair with wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 3 programmable positions with automatic return and foot control, cast aluminium base |
Packing dimensions
- Chair: 44 x 29 x 33 340 lbs.
- 4000-2.0 CB Cushion: 51 x 24 x 10 35 lbs.
- 5500: 36 x 28 x 39 100 lbs.
- 3550: 29 x 12 x 24 25 lbs.
- LP100: 45 x 26 x 44 30 lbs.
Options and parts
| Part | Description |
|---|---|
| 3500-2.0 | Mirage swing mount unit with chair bracket (for TPC chair only) |
| 3550-2.0 | Mirage rear swing mount suction package (for TPC chair only) |
| LP-100 | Mirage swing mount light post (ordered w/unit) |
| LP-105 | Mirage swing mount monitor post with monitor mounting bracket (ordered w/unit) |
| L700-LED | Vivid LED Operatory Light |
| L795-LED | Vivid LED Ceiling Mounted Operatory Light |
| L550-LED | Lustrous LED Operatory Light |
| L7601-LED | Luminous LED Operatory Light |
| P2335+TB | Deluxe autoclavable Hve Long valve with tubing |
| WIC800 | Standard flat screen monitor bracket |
| WIC840 | Mirage flat screen monitor bracket with 16" extension |
| MO17 | 17" LCD multi media flat screen monitor |
| H7000 | Illumination System – ISO B (5 hole) – tubing, control box, bulb, power supply |
| H7660 | Illumination System – ISO C (6 pin) – tubing, control box, power supply |
| 53016-L | Disposable Solids Collector Trap 2 1/8" (pack of 100) |
| EMB-901 | Built in Electric Motor System |
| AS-1101 | Mirage Assistants stool |
| DR1102 | Mirage Doctor’s Stool |
Options are not factory-installed unless specified on the purchase order. Contact TPC for pricing.
