Products › Post & Swing Mount Delivery › Mirage 2.0 / BLMT Swing Mount Delivery System
MIRAGE 2.0 / BLMT DELIVERY SYSTEM · MSP2400-2.0 / 2400-2.0 / 2450-2.0

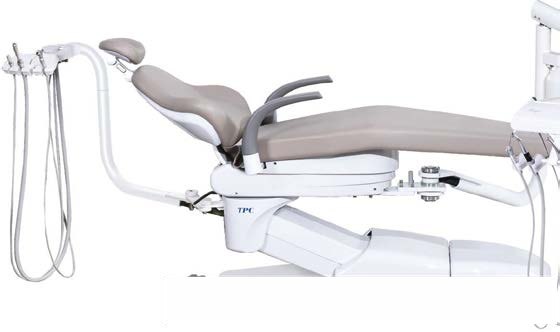

Mirage 2.0 / BLMT Swing Mount Delivery System
Swing mount delivery system compatible with the BLMT chair, with chair brackets and compatible components.
Sold through authorized dealers · 800-560-8222 · sbeckley@tpcdental.com
Features
- Compatible with BLMT 7, 10, 20, 20N, 50 patient chairs
- Rotating asepsis 3 handpiece automatic control
- Rear radius assistant’s arm system
- Optional LP100 swing mount light post
Models
| Model | Description |
|---|---|
| MSP2400-2.0 | Mirage 2.0 BLMT Swing Mount Delivery System (unit + assistant package) |
Package includes
| Part | Description |
|---|---|
| 2400-2.0 | Rotating asepsis 3 handpiece automatic control with coolant controls, flex arm with air brake, diaphragm block design, wet/dry variable speed foot control, deluxe utility center with air / water filters and regulators, master shut off valves. Includes 3 way syringe and clean water system. Fits BLMT 7, 10, 20, 20N, 50. |
| 2450-2.0 | Rear radius asepsis assistant’s arm system, HVE and saliva ejector, water quick disconnect and solids collector. Fits BLMT 7, 10, 20, 20N, 50. Specify chair at time of order. |
BLMT compatible components
| Part | Description |
|---|---|

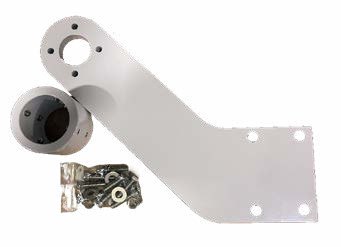

| 2400-BRKT-BEL | BLMT-TPC radius chair bracket. Fits 7, 10, 20, 20N, 50. Includes bearing / washer kit. |
| BELBRKT | BLMT chair mount bracket. Used to mount the TPC swing unit to a Belmont chair. Includes bolt / washer set. |
| BEL20-FC | BLMT chair foot control. Fits 7, 10, 20. Includes wire harness (square connector). |
| BEL20N-FC | BLMT chair foot control. Fits 20N, 50. Includes wire harness (flat connector). |
| 2450-BRKT-BEL | BLMT-TPC rear radius bracket only. Fits 7, 10, 20. Includes bolt / washer set. |
| 2450-BRKT-BEL-N | BLMT-TPC rear radius bracket only. Fits 20N, 50. Includes bolt / washer kit. |
| 2450-2.0-U | BLMT-TPC rear radius vacuum package, 7, 10, 20 |
| 2450-2.0-O | BLMT-TPC rear radius vacuum package, 20N, 50 |
Packing dimensions
- Chair: 44 x 29 x 33 / 340 lbs.
- Cushion: 51 x 24 x 10 / 35 lbs.
- 3500: 36 x 28 x 39 / 100 lbs.
- 3550: 29 x 12 x 24 / 25 lbs.
- LP100: 45 x 26 x 44 / 30 lbs.
Options and parts
| Part | Description |
|---|---|
| LP-100 | Mirage swing mount light post (ordered with unit) |
| LP-105 | Swing mount monitor post with monitor mounting bracket (ordered with unit) |
| L600-LED | Lucent LED operatory light |
| L690-LED | Lucent LED ceiling mounted operatory light |
| L550-LED | Lustrous LED operatory light |
| P2335+TB | Deluxe autoclavable HVE long valve with tubing |
| WIC800 | Standard flat screen monitor bracket |
| WIC840 | Mirage flat screen monitor bracket with 16" extension |
| MO17 | 17" LCD multi media flat screen monitor |
| A800N-1 | Advance 800 piezo scaler, built in |
| H7000 | Illumination system, ISO B (5 hole): tubing, control box, bulb, power supply |
| H7660 | Illumination system, ISO C (6 pin): tubing, control box, power supply |
| ALED55BN-A | LED 5W curing light, built in to dental unit |
| XV100 | Super thin X-ray film viewer |
| XV150-R | X-ray film viewer bracket (curved), for TPC Mirage unit only |
| AS-1101 | Mirage Assistant’s stool |
| DR-1102 | Mirage Doctor’s stool |
Options are not factory-installed unless specified on the purchase order. Contact TPC for pricing.
