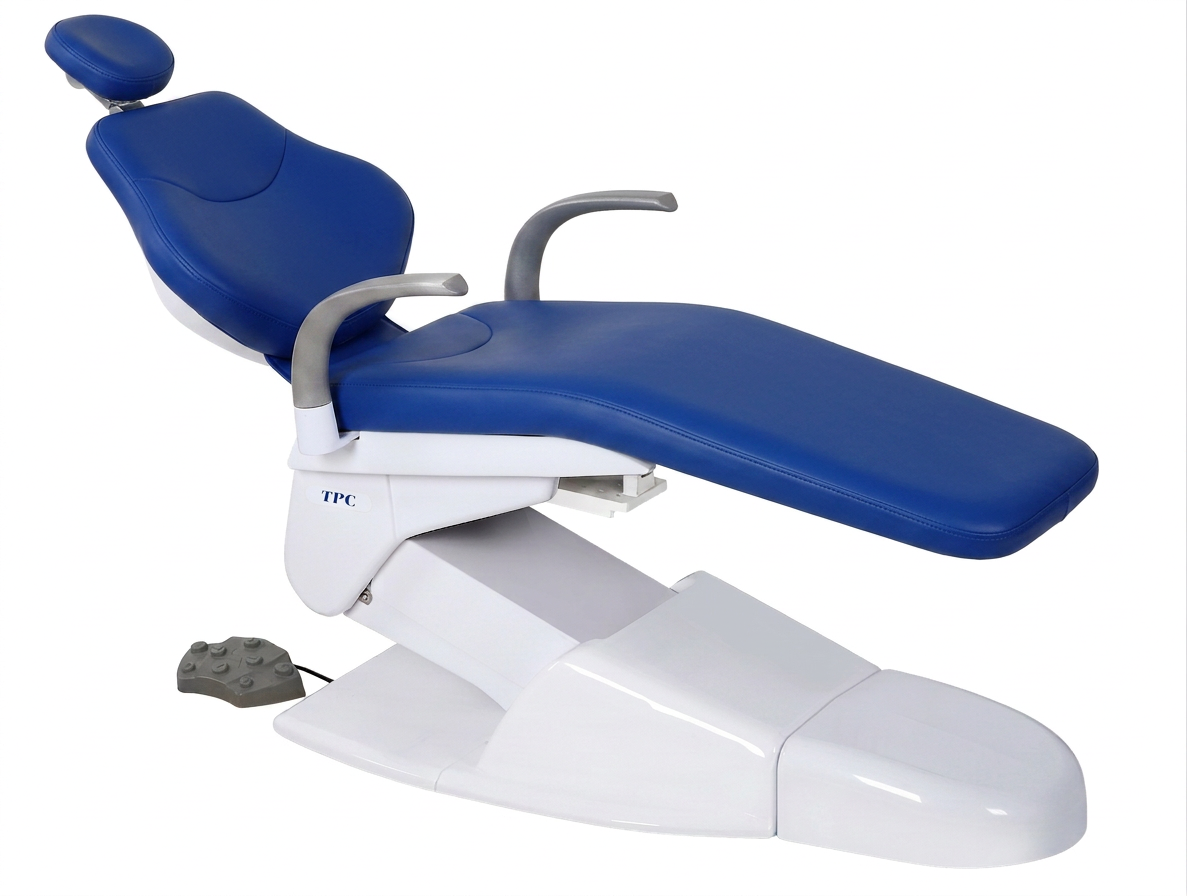

Laguna 2.0 Electromechanical Patient Chair
An electromechanical patient chair on a solid steel base. Hands-free foot control with two programmable positions plus an entry/exit position, a wide backrest and pivoting armrests.
Standard features
- Independent backrest
- Articulating dual axis headrest
- Solid steel base
- Programmable foot control
Specifications
Model L2000-2.0
| Model | L2000-2.0 |
|---|---|
| Lifting / lowering | Electromechanical, cantilever type |
| Initial height / stroke | 15.5" / 15" |
| Backrest reclining angle | 0° (horizontal) to 70° |
| Seat tilting | 10° to 20°, synchronized with backrest |
| Preset positions | Microcomputer control; three preset positions, auto return, last position |
| Chair rotation | Fixed |
| Headrest | Dual axis type |
| Safety shut-off plate | Under the main link |
| Emergency stop | Any switch can cancel chair movement |
| Input voltage | 110V or 220V |
| Chair size (L x W x H, in) | 44 x 29 x 33 |
| Warranty | 5 Year Limited |
Product includes
- Two programmable positions
- One preset exit position
- Electronic foot control with auto return function
- Built-in fuse / surge protection
- Toe guard protection to prevent scuffing
- All-metal construction
- Double articulating headrest, adjustable for height and wheelchair positioning
- Seamless upholstery
Standard upholstery colors
Select a color to preview it on the chair.
TPC recommends selecting colors from an actual physical color swatch. Colors displayed in print or on digital screens may vary due to monitor, device, printer, and display settings and may not accurately represent the final product color. Specify color and product code when ordering.

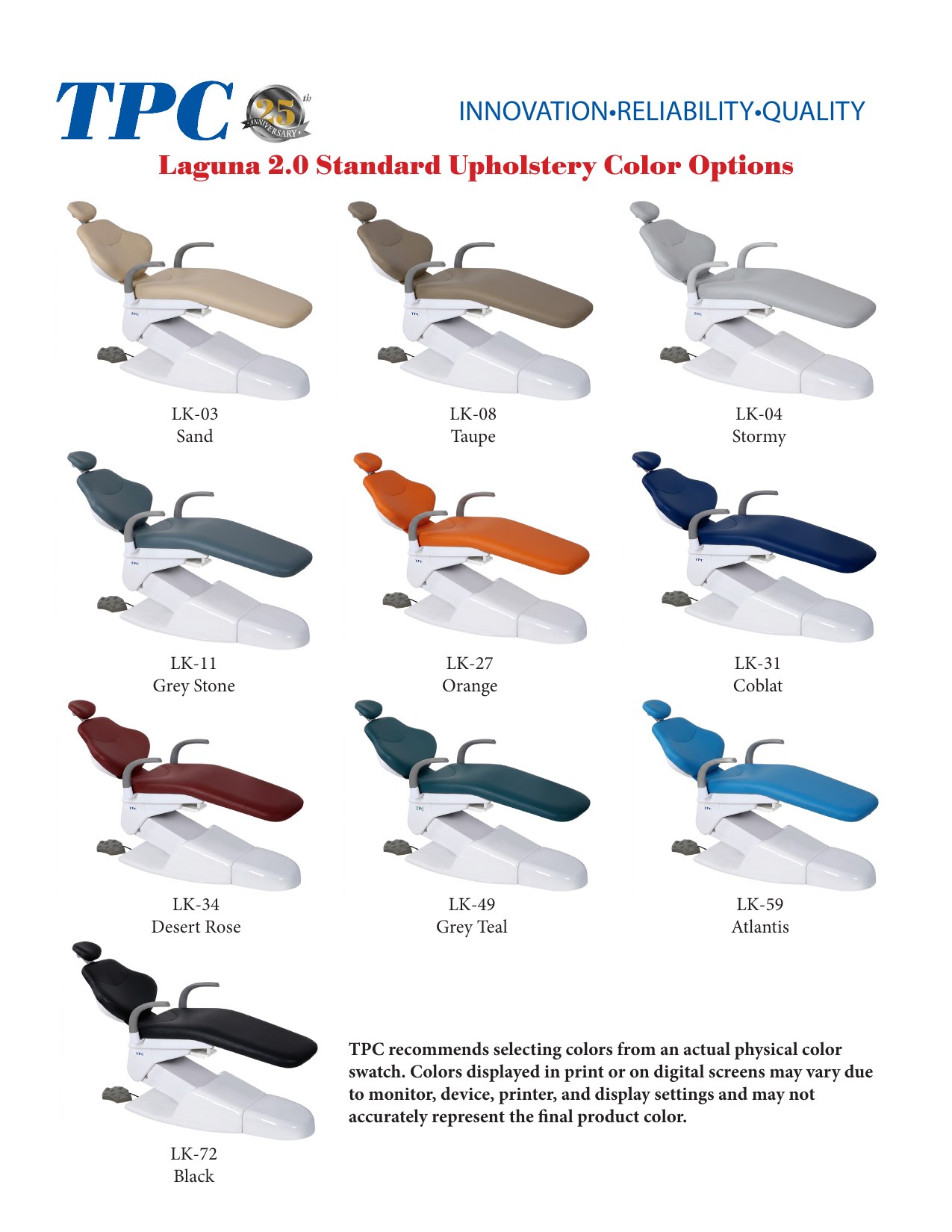

Laguna 2.0 upholstery color chart
All standard upholstery colors shown on the chair. Download the chart to share with customers.
TPC recommends selecting colors from an actual physical color swatch. Colors displayed in print or on digital screens may vary due to monitor, device, printer, and display settings and may not accurately represent the final product color. Specify color and product code when ordering.
Download Color Chart (PDF)Options
Options are not factory-installed unless specified on the purchase order. Additional charges apply. Contact TPC for pricing.
| TP-2005 | Touch pad control, chair mounted, 3 preset, auto return, last position |
|---|---|
| PC-5000-DU | Upcharge: dental chair upholstery, wide back, LK vinyl (specify color and product code) |
| PC-5000-Vinyl-UC | Upcharge: non-standard dental chair upholstery, wide back, vinyl |
| PC-5000-ULTR-UC | Upcharge: Ultra leather dental chair upholstery, wide back |
| LAG.2.0-BRKT | Laguna L2000-2.0 post mount chair bracket |
