Products › Operatory Packages › Bellagio Swing Mount Operatory System
Bellagio Swing Mount Operatory SystemBellagio Swing Mount Operatory System
BELLAGIO SWING MOUNT PACKAGE · MSP5500-2.0-CB / MSP5500-2.0

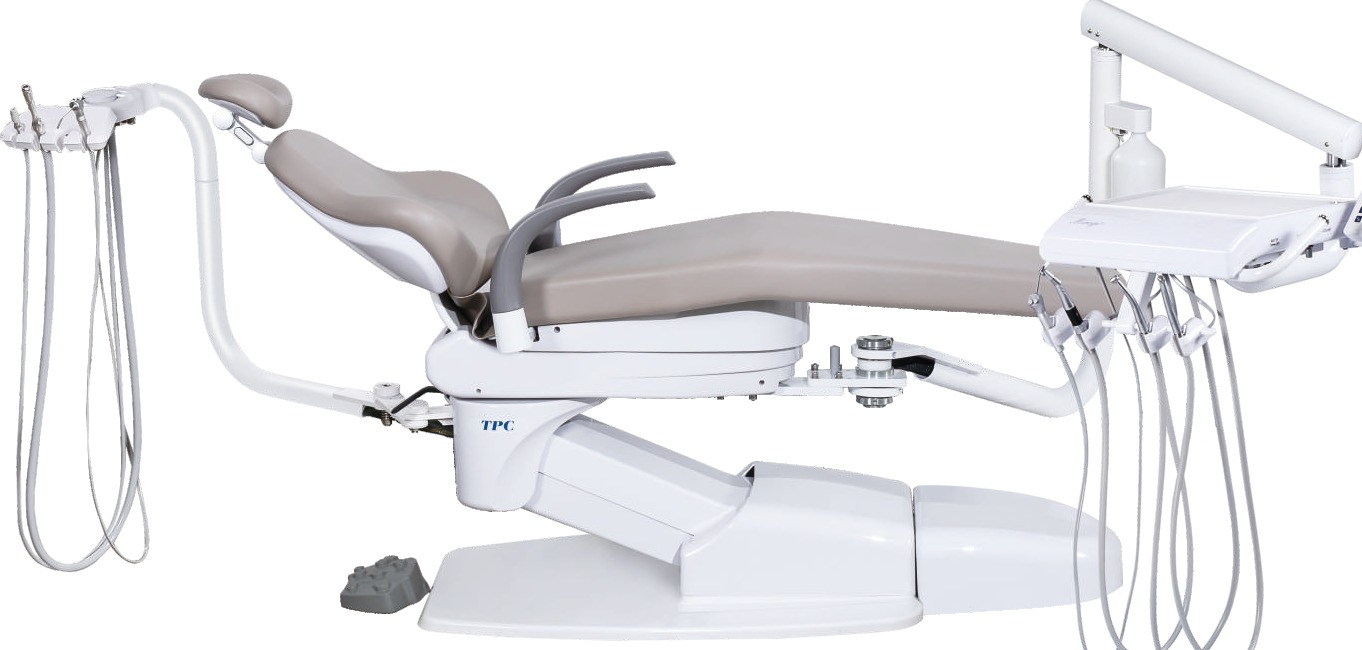

Bellagio Swing Mount Operatory System

Swing mount operatory with the 4000-2.0 hydraulic chair (cast aluminum or steel base), 5500-2.0 rotating unit and 3550-2.0 assistant’s arm.

Sold through authorized dealers · 800-560-8222 · sbeckley@tpcdental.com

Models

ModelDescription
MSP5500-2.0-CBBellagio Swing Mount with Cast Aluminum Base
MSP5500-2.0Bellagio Swing Mount with Steel Base

Package includes

PartDescription
4000-2.0-CBHydraulic cast aluminum base patient chair with wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 4 programmable positions with automatic return and foot control
5500-2.0Rotating asepsis 3 Handpiece automatic control with coolant controls, flex arm with air brake, diaphragm block design, wet/dry variable speed foot control, deluxe utility center with air /water filters and regulators, master shut off valves. Includes 3 way syringe and clean water system, integrated Piezo Scaler, Built-in LED Curing Light internal timer, integrated touch pad controls
3550-2.0Rear radius asepsis assistant's arm system, Hve and saliva, 3 Way Syringe
4000-2.0Hydraulic patient chair with steel base,wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 3 programmable positions with automatic return and foot control

Packing dimensions

  • Chair: 44 x 29 x 33 340 lbs.
  • Cushion: 51 x 24 x 10 35 lbs.
  • 5500: 36 x 28 x 39 100 lbs.
  • 3550: 29 x 12 x 24 25 lbs.
  • 4000-2.0 LP100: 45 x 26 x 44 30 lbs.

Options and parts

PartDescription
5500-2.0Bellagio swing mount unit with chair bracket (for TPC chair only)
3550-2.0Mirage rear swing mount suction package (for TPC chair only)
LP-100Mirage swing mount light post (ordered w/unit)
LP-105Mirage swing mount monitor post with monitor mounting bracket (ordered w/unit)
L700-LEDVivid LED Operatory Light
L795-LEDVivid LED Ceiling Mounted Operatory Light
L550-LEDLustrous LED Operatory Light
L7601-LEDLuminous LED Operatory Light
P2335+TBDeluxe autoclavable Hve Long valve with tubing
WIC800Standard flat screen monitor bracket
WIC840Mirage flat screen monitor bracket with 16" extension
MO1717" LCD multi media flat screen monitor
H7000Illumination System – ISO B (5 hole) – tubing, control box, bulb, power supply
H7660Illumination System – ISO C (6 pin) – tubing, control box, power supply
53016-LDisposable Solids Collector Trap 2 1/8" (pack of 100)
EMB-901Built in Electric Motor System
AS-1101Mirage Assistants stool
DR1102Mirage Doctor’s Stool

Options are not factory-installed unless specified on the purchase order. Contact TPC for pricing.
